Insteon 2 way switch wiring diagram steppng if your switchs wires do not match the diagram consult the install insteon wall switch attach the wal plate and turn on power.

Insteon 2 way switch diagram. You cannot simply replace a one switch in a multi switch circuit with insteon leaving the others in place. Installing togglelinc in a typical 2 way circuit 1 at the circuit breaker or fuse panel disable the circuit supplying power to the switch. Example group for a virtual 3 way circuit with switchlinc a and switchlinc b. Insteon provides the following wiring diagram for installing a 3 way the two switches together can the secondary switch affect the power flow.

The most common example of a group is a circuit with 2 switches referred to as a 3 way circuit. This is your line wire. This diagram above assumes that the power line comes into the left wall box a 4 wire cable connects the left and right wall boxes and the load goes out the left wall box. Wiring 3 way insteon switches.

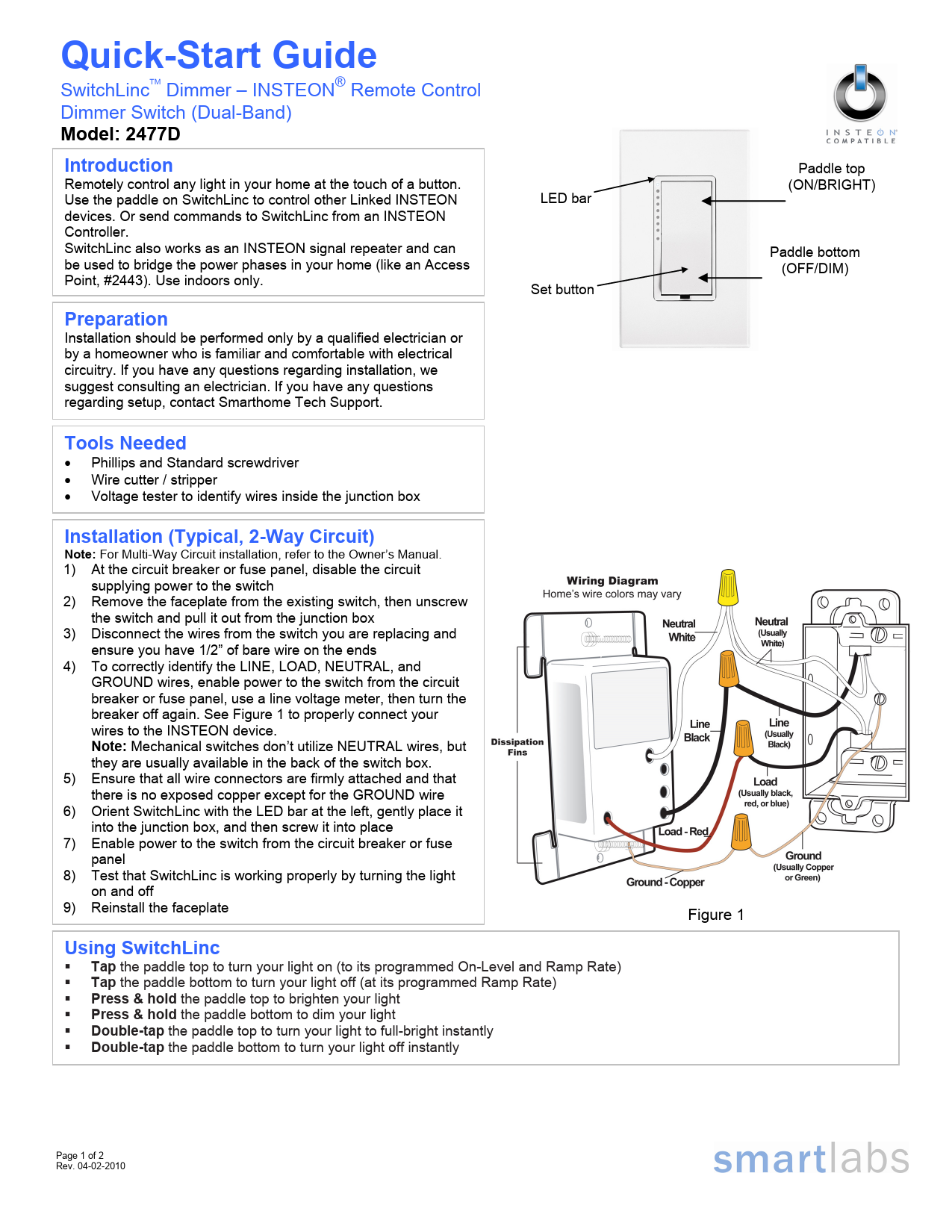

With insteon every wall switch can control every other wall switch no extra wires needed. Install insteon wall switch attach the wall plate and turn on power. Installing switchlinc in a typical 2 way circuit 1 at the circuit breaker or fuse panel disable the circuit supplying power to the switch 2 remove the faceplate from the existing switch then unscrew the switch and pull it out from the wall box. 2 remove the faceplate from the existing switch then unscrew the switch and pull it out from the junction box.

Both switches will still be connected to the usually white neutral wire at points b and d but the usually black line coming into the first switch will be connected with a wire nut to both the line of the switch and one of the often red traveler wires. Great if youre building anew but almost impossible to retrofit. Turn on power and use a voltage detector to identify the live wire. Turn both a and b on step 2.

Insteon 3 way switch alternate wiring. With traditional wall switches control from multiple locations like in a long hallway requires special dedicated wiring.
