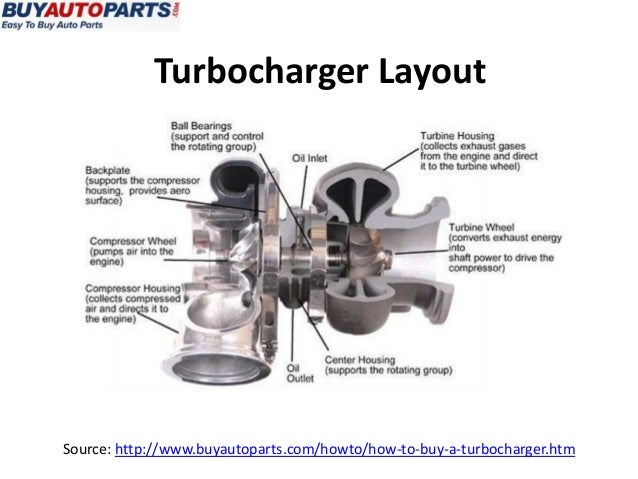

Turbocharger Layout

A turbocharger contains a gas turbine coupled to a compressor.

Turbocharger layout. It forces additional amount of air or air fuel mixture into the engine. This is due to the time needed for the exhaust system and turbocharger to generate the required boost which can also be. In this car craft turbocharged engine guide we demonstrate how to install your first turbo on any engine with a list of terms and detailed explanations of turbocharger system components. The turbocharger is a centrifugal air pump driven by the engine exhaust gas.

Whenever the turbine rotates the compressor is operated. Turbochargers are one of the most complex components of an automobile. 6 different types of turbocharger and the advantages of each setup. Turbochargers are powered by the kinetic energy of exhaust gases from the engine.

Much mystery surrounds the turbocharger. The anatomy of the turbo charger system the concept of forced induction. This increases combustion pressure and engine power. And thats somewhat surprising.

Both the turbine and the compressor are keyed to the same shaft. The basic advantage of using a turbocharger is that you get more power output for the same size of engine every single stroke of the piston in every single cylinder generates more power than it would otherwise do. The wastegate senses the boost pressure. You can use turbochargers with either gasoline or diesel engines and on more or less any kind of vehicle car truck ship or bus.

Its somewhat of a mechanical monster to most people even those folks that actually own a turbocharged engine. Whats the difference between single twin twin scroll variable geometry or even electric turbochargers. Turbocharger lag turbo lag is the time required to change power output in response to a throttle change noticed as a hesitation or slowed throttle response when accelerating as compared to a naturally aspirated engine. Most automotive turbochargers have a wastegate which allows the use of a smaller turbocharger to reduce lag while preventing it from spinning too quickly at high engine speedsthe wastegate is a valve that allows the exhaust to bypass the turbine blades.
